Yuav ua li cas hloov kho IR touch screen firmware

Ua ntej koj pib cov txheej txheem kho dua tshiab, koj yuav tsum hloov lub sijhawm ntawm lub khoos phis tawj:2019-05-31



1. Txuas lub vijtsam kov rau lub computer ntawm USB cable.



2. Ob npaug nias los khiav qhov kev pab cuam hloov kho USB "VID=0x1FF7 \

MultiTouchUsbUpgrade-notime.exe", raws li qhia hauv daim duab hauv qab no.

Daim duab hauv qab no qhia tau hais tias lub vijtsam kov txuas nrog lub computer.

3. Nyem rau ntawm lub pob hauv qab no kom nkag mus rau hom kev hloov kho dua tshiab.

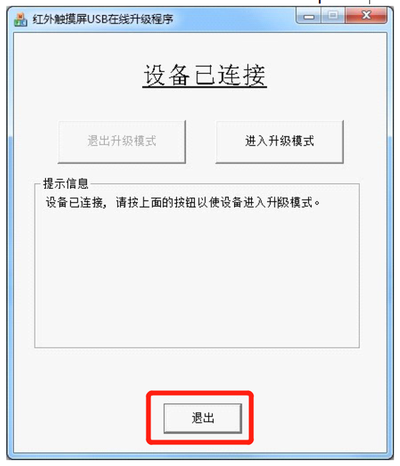

4. Ces nias lub pob hauv qab no kom tawm.



5. Disconnect lub kov screen USB cable los ntawm lub PC, ces txuas nws dua. Yog hais tias nws nyuaj rau disconnect tus kov screen cable, thov tua lub PC, thiab disconnect lub PC fais fab cable rau tsawg kawg yog 10 vib nas this, kom paub tseeb tias lub kov screen yog powered. Qhib lub PC dua tom qab qhov no.



6. Ob npaug nias qhib qhov kev pab cuam hloov kho USB "VID=0x595A \MultiTouchUsbUpgrade-notime.exe", raws li qhia hauv daim duab hauv qab no.



7. Daim duab qhia tau hais tias lub touchscreen ntaus ntawv tau nkag mus rau hauv lub xeev txawj tej yam ntxiv, tus nkag mus upgrade module khawm yog grey. Nyem rau sab xis hauv qab khawm rau cov kauj ruam tom ntej.



8. Nyem rau sab xis hauv qab mus xauj thiab xaiv cov ntaub ntawv hloov kho dua tshiab, xaus nrog .bin,

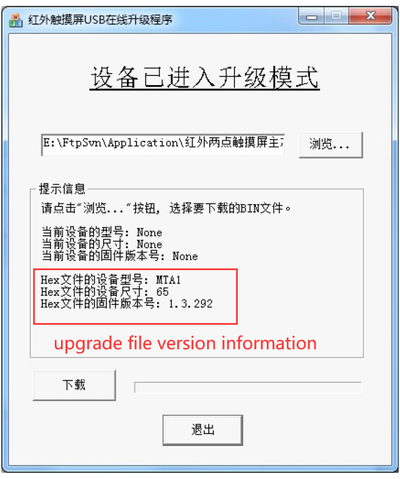

9. Tom qab xaiv cov ntaub ntawv kho dua tshiab, cov ntaub ntawv cov ntaub ntawv yuav raug qhia ntawm no:



10. Nyem rau sab laug khawm kom pib kho dua tshiab.

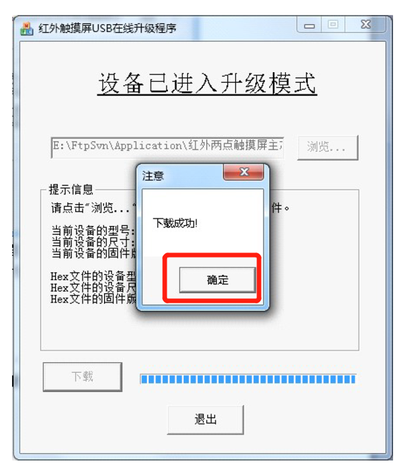

11. Tom qab kho dua tshiab lawm, nyem lub pob nruab nrab kom paub meej tias kev hloov kho tiav lawm.



12. Ces nias lub pob hauv qab kom tawm.



13. Tshem tawm thiab rov txuas lub kov npo cable dua, lub vijtsam kov yuav ua haujlwm zoo tam sim no. Yog hais tias nws nyuaj rau disconnect tus kov screen cable, thov tua lub PC, thiab disconnect lub PC fais fab cable rau tsawg kawg yog 10 vib nas this, kom paub tseeb tias lub kov screen yog powered. Lub vijtsam kov yuav tsum ua haujlwm zoo tom qab lub PC qhib.









Nov yog phau ntawv qhia video
